詳細說明

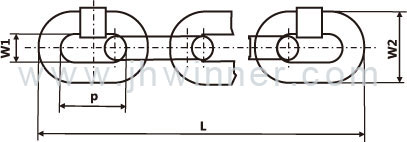

| Stork No | Mominal size | Working load limit（Max.) | Proof test（Min.) | Min.Breaking load | Pitch(Max.) | Inside width | ||||||
| mm | in | WKG | lbs | kn | lbs | kn | lbs | mm | in | mm | in | |
| 510301000 | 5.5 | 7/32 | 970 | 2100 | 19 | 4200 | 38.0 | 8400 | 17.6 | 0.69 | 7.14-8.25 | 0.218-0.325 |
| 510302000 | 7.0 | 9/32 | 1570 | 3500 | 30.8 | 7000 | 61.6 | 14000 | 22.9 | 0.90 | 9.53-10.29 | 0.375-0.430 |
| 510303000 | 8.0 | 5/16 | 2000 | 4500 | 40.3 | 9000 | 80.6 | 18000 | 26.4 | 1.04 | 10.92-12.7 | 0.430-0.500 |
| 510304000 | 10.0 | 3/8 | 3200 | 7100 | 63 | 14200 | 126 | 28400 | 32.0 | 1.26 | 13.0-15.2 | 0.512-0.600 |
| 510305000 | 13.0 | 1/2 | 5400 | 12000 | 107 | 24000 | 214 | 48000 | 41.6 | 1.64 | 17.48-19.5 | 0.688-0.768 |
| 510306000 | 16.0 | 5/8 | 8200 | 18100 | 161 | 36200 | 322 | 72400 | 51.2 | 2.02 | 20.63-24.0 | 0.812-0.945 |
| 510307000 | 20.0 | 3/4 | 12800 | 28300 | 252 | 56600 | 504 | 113200 | 64.0 | 2.52 | 25.0-30.0 | 0.984-1.180 |
| 510308000 | 22.0 | 7/8 | 15500 | 34200 | 305 | 68400 | 610 | 136800 | 70.4 | 2.77 | 27.50-33.0 | 1.080-1.300 |
| 510309000 | 26.0 | 1 | 21600 | 47700 | 425 | 95400 | 850 | 190800 | 83.2 | 3.28 | 32.50-39.0 | 1.280-1.540 |
| 510310000 | 32.0 | 1-1/4 | 32800 | 72300 | 644 | 144600 | 1288 | 289200 | 102.4 | 4.03 | 40.00-48.0 | 1.580-1.890 |
