詳細(xì)說(shuō)明

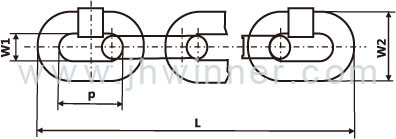

| Stork No | d×p(mm)Capacity | Width（mm) | Working load limit （ton) | Proof test （kn) | Min.Breaking load （kn) | |
| Inside width | Outside width | |||||
| 510104012 | 4×12 | 5.2 | 14.8 | 0.5 | 12.6 | 20.1 |
| 510105015 | 5×15 | 6.5 | 18.5 | 0.8 | 19.6 | 31.4 |
| 510106018 | 6×18 | 7.8 | 22.2 | 1.12 | 28.3 | 45.2 |
| 510107021 | 7×21 | 9.1 | 25.9 | 1.5 | 38.5 | 61.6 |
| 510108024 | 8×24 | 10.4 | 29.6 | 2 | 50.3 | 80.4 |
| 510109033 | 8.5×33.1 | 12 | 31 | 2.25 | 56.8 | 90.8 |
| 510110035 | 9.9×35 | 14.2 | 15.5 | 3.1 | 77 | 123.5 |
| 510110030 | 10×30 | 13 | 37 | 3.15 | 78.5 | 126 |
| 510111034 | 11×34 | 13.7 | 38 | 3.8 | 91 | 152 |
| 510113039 | 13×39 | 16.9 | 48.1 | 5.3 | 133 | 212 |
| 510113081 | 13×81 | 22 | 50 | 5.3 | 133 | 212 |
